Matrix and vector manipulations

import numpy as np
import matplotlib.pyplot as plt

In some cases, matrices and vectors are composed of sub-matrices or sub-vectors. In another cases we may want to ‘reshape’ a matrix, or reshape a vector into a matrix, or vice versa. We can conveniently do such operations using some standard numpy functions:

• np.block to create a matrix from sub-matrices

• np.concatenate to combine two or more vectors into one vector

• np.reshape to change the shape of a matrix

Let’s go over a some exercises to see how to manipulate matrices and vectors using these functions.

\(\text{Task 3.1:}\)

Run the code below to create four different matrices and combine these into a single matrix.

Complete the code to extract the top row of matrix A1 into vector b1 and the top row of matrix A2 into vector b2.

A11 = np.array([
    [1, 0, 0, 0, 1, 0],
    [1, 1, 0, 1, 1, 0],
    [1, 0, 1, 0, 1, 0],
    [1, 0, 0, 0, 1, 0],
    [1, 0, 0, 0, 1, 0],
    [0, 0, 0, 0, 0, 0]])

A12 = np.array([
    [1, 0, 0, 0, 1],
    [1, 0, 0, 0, 1],
    [1, 0, 0, 0, 1],
    [1, 0, 0, 0, 1],
    [0, 1, 1, 1, 0],
    [0, 0, 0, 0, 0]])

A21 = A12.transpose().copy()
A21[1:4,0] = 1

A22 = np.array([
    [1, 1, 1, 1, 1],
    [1, 0, 0, 0, 0],
    [1, 1, 1, 1, 1],
    [1, 0, 0, 0, 0],
    [1, 1, 1, 1, 1]])

b1 = A11[0,:]
b2 = A12[0,:]

\(\text{Task 3.2:}\)

Run the code below to create a single matrix A from the four sub-matrices and combine the two b-vectors into a single vector b. Print vector b and plot matrix A using plt.matshow.

A = np.block([[A11, A12],
              [A21, A22]])

b = np.concatenate([b1, b2])

print(b)

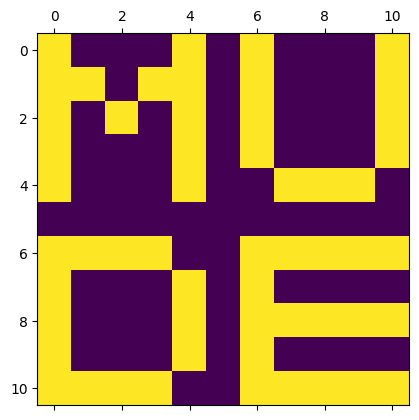

plt.matshow(A)
plt.show()

[1 0 0 0 1 0 1 0 0 0 1]

Now, we will use the np.reshape function to change the shape of a matrix.

Reshape puts all matrix components row-by-row behind each other in a long vector and then recreates the matrix according to the new shape by taking row-by-row from the long vector.

\(\text{Task 3.3:}\)

Run the code below to change the shape of the matrix A11 and A21, and plot the resuls using plt.matshow.

A11 = A11.reshape(4,9)

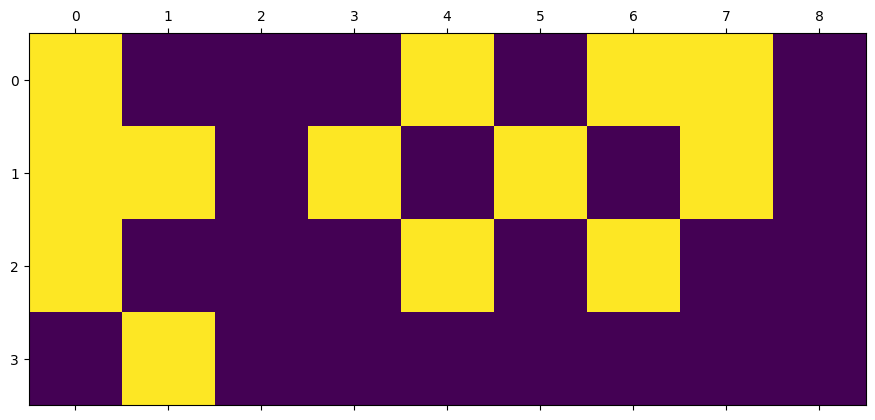

plt.matshow(A11)
A21 = A21.reshape(6,5)

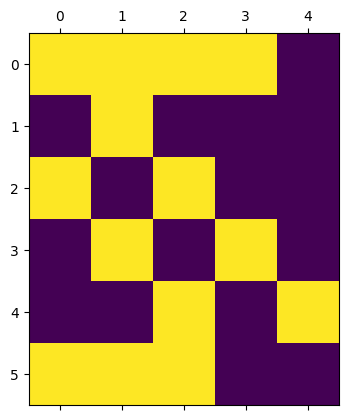

plt.matshow(A21)
plt.show()

Note that the results look quite different than the original (sub-)matrices, and the operation seems quite useless. Nevertheless, in some situations it might be useful to perform operations on a vector and reshape the result back into matrix, as we will see later on in MUDE.

\(\text{Task 3.4:}\)

Play with the reshape function yourself. Note that the total number of elements in the original matrix and the reshaped matrix must remain equal.
