Bivariate Gaussian Distributions Using Real CPT Data

Part 1: Geotechnical background and data

What is a CPT?

The Cone Penetration Test (CPT) is an in-situ geotechnical test. A cone-shaped probe is pushed vertically into the ground at a controlled rate while soil resistance is measured continuously with depth. Because measurements are obtained at closely spaced depth intervals, a CPT provides a detailed profile of changes in ground conditions.

In this workshop we deliberately consider only two measurements:

• Cone resistance, \(q_c\) [MPa] — resistance acting on the cone tip. Larger values generally indicate greater resistance of the soil to penetration.

• Sleeve friction, \(f_s\) [MPa] — friction acting along the sleeve immediately behind the cone.

Both measurements respond to the soil encountered by the probe. They may therefore vary together and provide a useful real engineering example for studying covariance, correlation, joint probability distributions, and conditional distributions.

A CPT can contain other measurements, but these are intentionally not introduced here. No prior geotechnical knowledge is required.

The real dataset

The dataset is a real CPT profile from the Netherlands, extending to approximately 15 m below ground level, with measurements at roughly 0.02 m intervals.

For this workshop we use all available paired \(q_c\) and \(f_s\) measurements over the full profile.

import pandas as pd
import numpy as np
from scipy.stats import multivariate_normal
from scipy.stats import norm
import matplotlib.pyplot as plt
from statistics import mean, stdev

import os
from urllib.request import urlretrieve

def findfile(fname):
    if not os.path.isfile(fname):
        print(f'Downloading {fname}...')
        urlretrieve('https://github.com/TUDelft-MUDE/source-files/raw/main/file/'+fname, fname)

findfile('CPT_data.csv')

Downloading CPT_data.csv...

dataframe = pd.read_csv('CPT_data.csv')

# Only the variables required for this workshop
cpt = dataframe[['depth_m', 'qc_MPa', 'fs_MPa']].dropna()

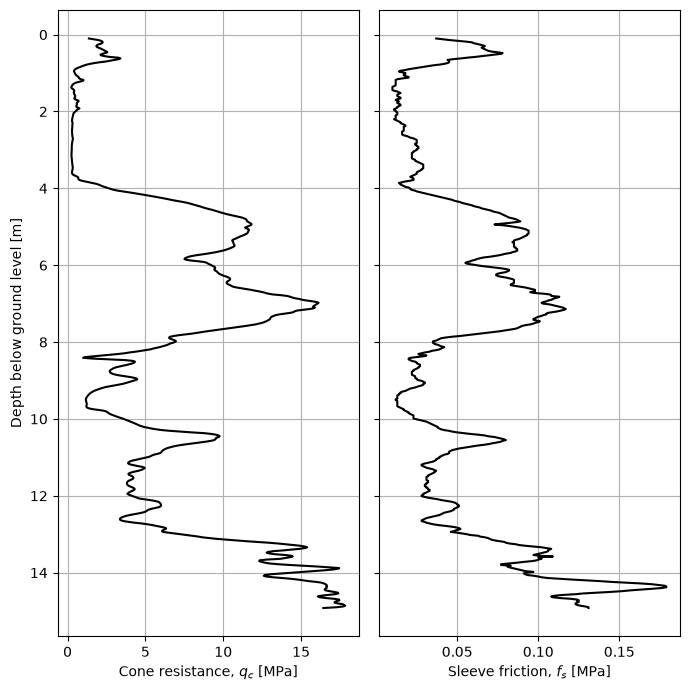

# Inspect the real CPT profile
fig, axes = plt.subplots(1, 2, figsize=(7,7), sharey=True)
axes[0].plot(cpt['qc_MPa'], cpt['depth_m'], 'k')
axes[0].set_xlabel(r'Cone resistance, $q_c$ [MPa]')
axes[0].set_ylabel('Depth below ground level [m]')
axes[0].grid()

axes[1].plot(cpt['fs_MPa'], cpt['depth_m'], 'k')
axes[1].set_xlabel(r'Sleeve friction, $f_s$ [MPa]')
axes[1].grid()

axes[0].invert_yaxis()
plt.tight_layout()

# Use the complete set of paired qc-fs measurements
data = cpt[['qc_MPa', 'fs_MPa']].to_numpy()

print('Number of paired observations:', len(data))
print('Depth range: {:.2f}–{:.2f} m'.format(cpt.depth_m.min(), cpt.depth_m.max()))
print(data)

Number of paired observations: 743
Depth range: 0.10–14.92 m
[[ 1.37   0.037]
 [ 1.685  0.041]
 [ 1.96   0.045]
 ...
 [17.704  0.129]
 [17.266  0.131]
 [16.427  0.131]]

Part 2: Covariance and correlation

Task 2.1: Explore dependence

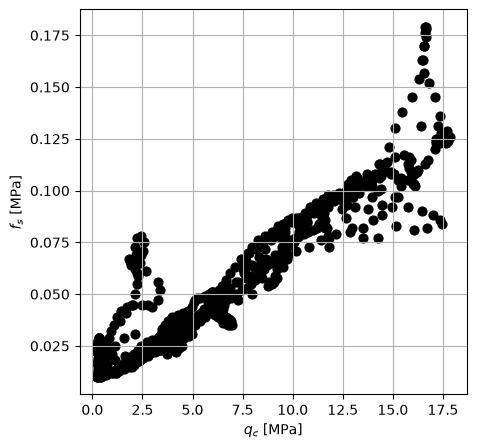

Plot cone resistance \(q_c\) against sleeve friction \(f_s\) for the whole CPT profile.

Based on the scatter plot:

1. Do larger values of \(q_c\) generally occur together with larger values of \(f_s\)?

2. Would you expect these two measurements to be statistically independent?

Solution 2.1:

Larger values of \(q_c\) generally occur together with larger values of \(f_s\), indicating positive dependence. Therefore, the two measurements should not be treated as statistically independent.

fig, ax = plt.subplots(figsize=(5,5))
ax.scatter(data[:,0], data[:,1], 40, 'k')
ax.set_ylabel(r'$f_s$ [MPa]')
ax.set_xlabel(r'$q_c$ [MPa]')
ax.grid()

Task 2.2:

It looks like a relationship exists between the two CPT variables. Let’s quantify it.

Define a function that calculates the covariance between two variables. The function must take the two vectors of observations as input and return the covariance.

Apply the function to calculate the covariance between \(q_c\) and \(f_s\). Interpret both the sign and magnitude of the covariance.

Important: code the function yourself; do not use a prebuilt covariance function.

Solution 2.2:

A positive covariance indicates that \(q_c\) and \(f_s\) tend to increase together.

The magnitude of covariance is difficult to interpret directly because it depends on the units and scales of both variables. Here its unit is \(\mathrm{MPa}^2\). A standardized, dimensionless measure is therefore more convenient.

def calculate_covariance(X1, X2):
    mean_x1 = mean(X1)
    mean_x2 = mean(X2)
    diff_x1 = X1-mean_x1
    diff_x2 = X2-mean_x2
    product = diff_x1*diff_x2
    covariance = sum(product) / (len(X1) - 1)
    return covariance

# Apply the function to the CPT data
covariance_qc_fs = calculate_covariance(data[:,0], data[:,1])

print('The covariance between qc and fs is',
      np.round(covariance_qc_fs, 5), 'MPa²')

The covariance between qc and fs is 0.17502 MPa²

Task 2.3:

Define a function that calculates Pearson’s correlation coefficient between two variables.

Apply the function to the CPT dataset and calculate the correlation coefficient between \(q_c\) and \(f_s\). Interpret the result and compare its usefulness with covariance.

Hint: you may reuse the covariance function defined above.

Solution 2.3:

For the complete CPT profile, Pearson’s correlation coefficient is approximately 0.93.

The correlation coefficient indicates a strong positive linear relationship between the two CPT measurements.

def pearson_correlation(X1, X2):
    covariance = calculate_covariance(X1, X2)
    std_x1 = stdev(X1)
    std_x2 = stdev(X2)
    correl_coeff = covariance / (std_x1 * std_x2)
    return correl_coeff

# Apply the function to the CPT data
correlation_qc_fs = pearson_correlation(data[:,0], data[:,1])

print("Pearson's correlation coefficient between qc and fs is",
      np.round(correlation_qc_fs, 2))

Pearson's correlation coefficient between qc and fs is 0.93

Part 3: Bivariate Gaussian distribution

Task 3.1: Fit a bivariate Gaussian distribution

Approximate the joint distribution of \(q_c\) and \(f_s\) using a bivariate Gaussian distribution.

• Estimate the mean vector.

• Estimate the covariance matrix.

• Generate 100 random pairs \((q_c,f_s)\).

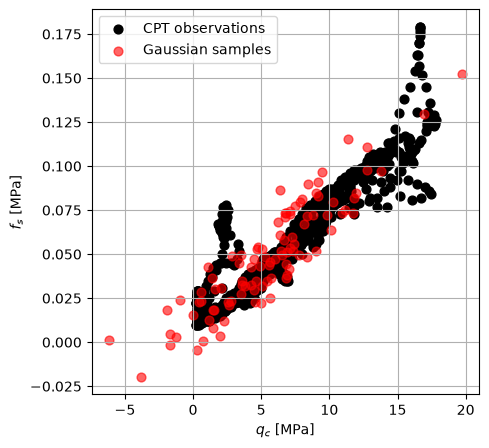

• Compare the generated samples with the real CPT observations.

Does one elliptical Gaussian cloud reproduce the real observations well?

Solution 3.1:

The fitted bivariate Gaussian reproduces the overall positive dependence and provides a simplified approximation of the joint distribution. However, one elliptical Gaussian cloud does not reproduce all features of the observed CPT data.

# Construct the mean vector
mu1 = mean(data[:,0])  # mean of qc
mu2 = mean(data[:,1])  # mean of fs
mu = np.array([mu1, mu2])

# Construct the covariance matrix
s1 = stdev(data[:,0])  # standard deviation of qc
s2 = stdev(data[:,1])  # standard deviation of fs

covariance_12 = calculate_covariance(data[:,0], data[:,1])

sigma = np.array([
    [s1**2, covariance_12],
    [covariance_12, s2**2]
])

# Draw 100 samples from the fitted bivariate Gaussian distribution
samples = multivariate_normal(mean=mu, cov=sigma).rvs(size=100)

# Compare samples with observations
fig, ax = plt.subplots(figsize=(5,5))
ax.scatter(data[:,0], data[:,1], 40, 'k', label='CPT observations')
ax.scatter(samples[:,0], samples[:,1], 40, 'r', alpha=0.6,
           label='Gaussian samples')
ax.set_ylabel(r'$f_s$ [MPa]')
ax.set_xlabel(r'$q_c$ [MPa]')
ax.grid()
ax.legend();

Task 3.2:

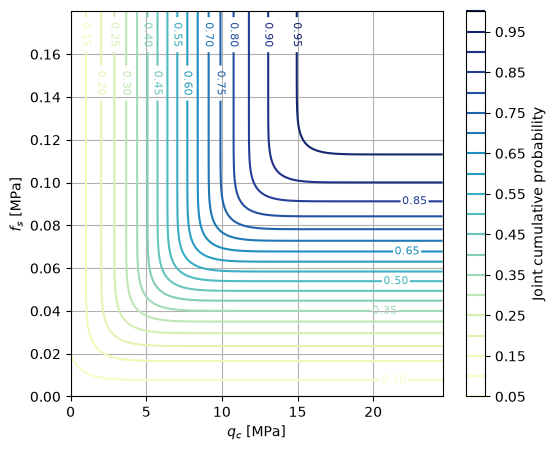

Using the fitted bivariate Gaussian distribution, compute and plot the bivariate cumulative distribution function (CDF) as contours.

The x- and y-axes represent values of \(q_c\) and \(f_s\), while each contour represents a value of

\[ P(Q_c \leq q_c,\; F_s \leq f_s). \]

Solution 3.2:

# Define a mesh over the range of interest
n = 200
values_qc = np.linspace(max(0, mu[0]-3.5*s1), mu[0]+3.5*s1, n)
values_fs = np.linspace(max(0, mu[1]-3.5*s2), mu[1]+3.5*s2, n)

# Define the grid
X1, X2 = np.meshgrid(values_qc, values_fs)

# Convert the 2D grids into 1D arrays
X1_1d = np.concatenate(X1.T)
X2_1d = np.concatenate(X2.T)

# Combine them so each row is one (qc, fs) point
X = np.array([X1_1d, X2_1d]).T

# Evaluate the bivariate CDF
Z = multivariate_normal(mean=mu, cov=sigma).cdf(X)

# Reshape the CDF values back to the mesh shape
Z = Z.reshape(X1.shape).T

# Plot CDF contours
fig, ax = plt.subplots(figsize=(6,5))

contours = ax.contour(
    X1, X2, Z,
    20,
    cmap='YlGnBu'
)

ax.clabel(contours, inline=True, fontsize=8)
ax.grid()

ax.set_xlabel(r'$q_c$ [MPa]')
ax.set_ylabel(r'$f_s$ [MPa]')

fig.colorbar(
    contours,
    ax=ax,
    label='Joint cumulative probability'
);

Task 3.3: Joint probabilities

Using the fitted bivariate Gaussian distribution, calculate:

• \(P[q_c > 10.53\ \mathrm{MPa}]\)

• \(P[q_c \leq 4.94\ \mathrm{MPa}\ \mathrm{AND}\ f_s \leq 0.042\ \mathrm{MPa}]\)

• \(P[q_c \leq 4.94\ \mathrm{MPa}\ \mathrm{OR}\ f_s \leq 0.042\ \mathrm{MPa}]\)

• \(P[q_c > 4.94\ \mathrm{MPa}\ \mathrm{AND}\ f_s > 0.042\ \mathrm{MPa}]\)

Then calculate the last probability again assuming independence:

\[P(q_c>4.94)P(f_s>0.042).\]

Why are the answers different?

Solution 3.3:

The results are different because \(q_c\) and \(f_s\) are correlated and therefore are not independent. The joint Gaussian calculation accounts for their dependence through the covariance, whereas the product \(P(q_c>a)P(f_s>b)\) assumes independence.

qc_high = 10.53250000
qc_threshold = 4.93950000
fs_threshold = 0.04200000

prob_qc_higher = 1 - norm.cdf(qc_high, loc=mu1, scale=s1)
print('P[qc > high threshold] =', np.round(prob_qc_higher, 3))

prob_joint_lower = multivariate_normal(mean=mu, cov=sigma).cdf([qc_threshold, fs_threshold])
print('P[qc <= threshold AND fs <= threshold] =', np.round(prob_joint_lower, 3))

prob_qc_lower = norm.cdf(qc_threshold, loc=mu1, scale=s1)
prob_fs_lower = norm.cdf(fs_threshold, loc=mu2, scale=s2)
prob_or_lower = prob_qc_lower + prob_fs_lower - prob_joint_lower
print('P[qc <= threshold OR fs <= threshold] =', np.round(prob_or_lower, 3))

prob_joint_upper = 1 - prob_qc_lower - prob_fs_lower + prob_joint_lower
print('P[qc > threshold AND fs > threshold] =', np.round(prob_joint_upper, 3))

prob_independent = (1-prob_qc_lower)*(1-prob_fs_lower)
print('If independence were assumed =', np.round(prob_independent, 3))

P[qc > high threshold] = 0.213
P[qc <= threshold AND fs <= threshold] = 0.324
P[qc <= threshold OR fs <= threshold] = 0.436
P[qc > threshold AND fs > threshold] = 0.564
If independence were assumed = 0.384

Part 4: Conditioning the Bivariate Gaussian distribution

Task 4.1: Conditional information

Suppose cone resistance at a depth of interest is known to be

\[q_c=4.94\ \mathrm{MPa}.\]

Under the fitted bivariate Gaussian model, determine

\[f_s\mid q_c=4.94\ \mathrm{MPa}.\]

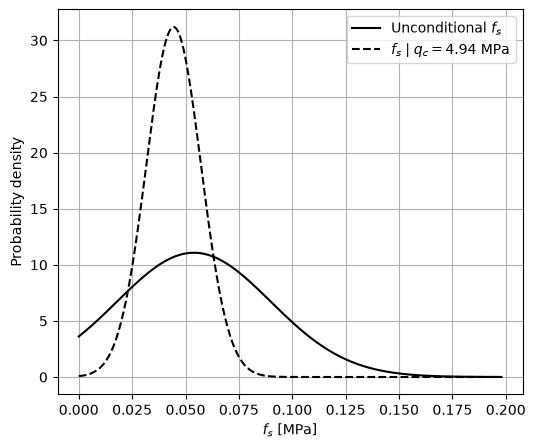

Plot the unconditional distribution of \(f_s\) and the conditional distribution after observing \(q_c\).

How do the mean and standard deviation change? What does this tell you about using one correlated engineering measurement to reduce uncertainty in another?

First derive the conditional Gaussian equations using pen and paper.

Solution 4.1:

A useful property of the multivariate Gaussian distribution is that a conditional distribution is also Gaussian.

For two jointly Gaussian variables, the conditional distribution of \(X_2\) given \(X_1=a\) is

\[ > X_2 \mid X_1=a > \sim > \mathcal{N}\left(\hat{\mu}_2,\hat{\sigma}_2^2\right), > \]

with

\[ > \hat{\mu}_2 > = > \mu_2 > + > \Sigma_{21}\Sigma_{11}^{-1}(a-\mu_1), > \]

and

\[ > \hat{\sigma}_2^2 > = > \Sigma_{22} > - > \Sigma_{21}\Sigma_{11}^{-1}\Sigma_{12}. > \]

In this problem, \(X_1=q_c\) and \(X_2=f_s\).

qc_observed = 4.93950000

cond_mu_fs = mu[1] + sigma[1,0] * sigma[0,0]**(-1) * (qc_observed - mu[0])
cond_var_fs = sigma[1,1] - sigma[1,0] * sigma[0,0]**(-1) * sigma[0,1]

print('Observed qc            =', np.round(qc_observed, 3), 'MPa')
print('Unconditional mean fs =', np.round(mu[1], 4), 'MPa')
print('Conditional mean fs   =', np.round(cond_mu_fs, 4), 'MPa')
print('Unconditional SD fs   =', np.round(np.sqrt(sigma[1,1]), 4), 'MPa')
print('Conditional SD fs     =', np.round(np.sqrt(cond_var_fs), 4), 'MPa')

Observed qc            = 4.94 MPa
Unconditional mean fs = 0.0539 MPa
Conditional mean fs   = 0.0444 MPa
Unconditional SD fs   = 0.036 MPa
Conditional SD fs     = 0.0128 MPa

# Evaluate unconditional and conditional PDFs of fs
fs_plot = np.linspace(max(0, mu[1]-4*s2), mu[1]+4*s2, 300)

uncond_fs_pdf = norm.pdf(fs_plot, loc=mu[1], scale=np.sqrt(sigma[1,1]))
cond_fs_pdf = norm.pdf(fs_plot, loc=cond_mu_fs, scale=np.sqrt(cond_var_fs))

# Plot
fig, ax = plt.subplots(figsize=(6,5))
ax.plot(fs_plot, uncond_fs_pdf, 'k', label='Unconditional $f_s$')
ax.plot(fs_plot, cond_fs_pdf, '--k',
        label=rf'$f_s \mid q_c={qc_observed:.2f}$ MPa')
ax.grid()
ax.set_xlabel(r'$f_s$ [MPa]')
ax.set_ylabel('Probability density')
ax.legend();

Because \(q_c\) and \(f_s\) are correlated, knowing \(q_c\) provides information about \(f_s\).

The conditional mean changes according to the observed \(q_c\), while the conditional standard deviation is smaller than the unconditional standard deviation. Thus, information about one variable reduces uncertainty in the other.

By Zheng Guan, Delft University of Technology. CC BY 4.0, more info on the Credits page of Workbook.
