Fit AR(p) model#
In this exercise, we will fit an AR(p) model to a time series.The timeseries is already stationary and we will use two different methods to choose the number of lag (p) to include. First we will start by loading and displaying the data.
import numpy as np
import matplotlib.pyplot as plt
from statsmodels.graphics.tsaplots import plot_acf, plot_pacf
data = np.array([ 0.00000000e+00, 0.00000000e+00, 7.39366373e-01, 8.82012627e-01,
-2.17941679e-01, 1.54974089e+00, -8.98443756e-02, 1.00141169e+00,
2.42524470e-01, -1.02361298e-01, -1.10553118e+00, 3.04987823e-01,
-8.69761112e-01, -1.11315875e+00, -4.24734667e-01, 1.45309595e-01,
5.42097653e-01, 3.77506030e-01, -7.33921297e-01, -2.31148958e-01,
-1.76689101e+00, -6.79235565e-01, -4.00350747e-01, -2.35241349e-01,
-9.07637426e-01, 2.13326549e-01, 2.18065416e-01, -1.60757882e+00,
-2.07263765e+00, -1.18111332e+00, -1.47885555e+00, -1.89930627e+00,
-1.57038634e+00, -2.07430124e+00, -1.03020905e+00, -1.05763683e+00,
-7.48698592e-01, -1.57544551e+00, -2.50491924e+00, -1.42908722e+00,
-1.08312118e+00, -1.80363252e+00, -1.04630764e+00, -1.71038000e+00,
-1.71349481e+00, -1.44771288e+00, 4.20877715e-01, 5.07187528e-01,
-4.87173992e-01, 3.24049379e-01, 2.59529792e-01, 5.04614412e-01,
4.73901121e-01, 2.72281199e-01, -1.41652577e+00, -1.39176422e+00,
-8.29335646e-01, -4.20523393e-01, -8.41985423e-02, 9.41730115e-02,
-1.50729414e+00, -8.74161867e-01, 2.01810837e-01, -2.17818122e+00,
-5.92488929e-01, 1.07042695e+00, 4.37509451e-01, 7.22526958e-01,
1.22407607e+00, 7.70631751e-01, 1.50808058e+00, -8.50142466e-01,
-3.73831479e-01, 1.35391870e+00, 2.18917967e+00, 2.57638726e+00,
2.70701733e+00, 1.36794873e+00, 1.29999210e+00, 1.91501107e+00,
1.59349872e+00, 1.97732807e+00, 2.49992433e+00, 1.93175636e+00,
1.47660557e+00, 1.17536071e+00, 1.39557491e+00, 1.44857054e+00,
7.89092903e-01, -6.46392931e-01, 2.95521216e-01, -1.08968239e-01,
-3.85438702e-01, -3.58086137e-01, -5.09981434e-01, -2.05496939e+00,
-3.64585529e-01, -3.96458235e-02, 3.53929808e-01, 1.58901411e+00,
9.53132950e-02, 7.67470550e-01, 1.15384857e+00, 7.96439922e-01,
9.76627268e-01, 3.47042888e-01, 1.00590245e+00, 1.50082738e-01,
2.37379710e-01, 1.96873095e+00, 2.20072042e+00, 1.56046852e+00,
6.64436129e-01, 2.96544445e-01, 1.72227831e+00, 1.10644286e+00,
1.63238235e+00, 6.63026552e-01, 3.61978366e-01, 6.45668467e-01,
1.27851822e+00, 2.65148989e+00, 9.99420989e-01, 3.58085372e-01,
-4.62291606e-01, 9.37518000e-01, 1.23164122e+00, -3.12475856e-01,
1.36065286e-01, -6.16493968e-02, 6.69941343e-01, -3.42736465e-01,
-1.34703063e+00, -1.67947236e+00, 5.69358500e-01, 5.83468985e-01,
7.41796103e-01, 6.39326772e-01, 2.10445565e-01, 3.92168977e-01,
6.40725851e-01, 8.99547148e-01, 1.00500576e+00, -8.71818439e-02,
4.04000299e-02, 8.70113665e-01, -1.44264848e-01, 5.39213359e-01,
6.66901278e-01, 8.72123995e-01, 1.84825136e+00, 1.10125095e+00,
9.95721987e-01, 6.26088972e-01, 7.62512607e-01, 1.16511511e-01,
4.22571492e-01, 9.89100398e-02, 5.49712966e-01, -1.56725388e-01,
4.27536063e-01, 2.05360843e-01, -5.64858058e-01, -2.69873034e-02,
-9.37568737e-01, 8.65612664e-01, -3.69365069e-01, 2.39337297e+00,
8.60106273e-01, 3.29178916e+00, 1.71736403e+00, 2.13874664e+00,
1.48955823e+00, 1.48006688e+00, -6.88803421e-01, -3.24234835e-01,
-1.24331549e+00, -6.66509456e-01, -9.04246649e-01, -1.90451608e+00,
-9.87961104e-01, -5.48066393e-01, -1.57398280e-01, -4.07591149e-01,
1.15083345e+00, 5.88506643e-01, -5.92900945e-01, -3.44438570e-01,
-7.29310067e-01, 5.74169750e-01, 4.04520673e-01, -2.20288636e-01,
-2.77120327e-02, 9.88213495e-02, -1.09190567e+00, 7.19825871e-02,
-9.84122442e-01, -1.80535953e-01, -5.14311755e-01, -6.47274166e-01,
-7.56479222e-01, 1.08118071e-01, -9.57690388e-01, -1.57851451e+00,
-1.31524418e+00, -1.40305337e+00, -2.54378176e+00, -1.84970651e+00,
-2.32341947e+00, -1.60528868e+00, -6.02478175e-01, -1.51805873e+00,
-6.37833606e-01, 2.76604125e-01, -2.33841731e-01, -1.36818872e+00,
-5.72040718e-01, 6.55878864e-01, 1.13125989e+00, 2.20828257e+00,
1.08565693e+00, 1.28351412e-01, 5.46169855e-01, 5.93641545e-01,
6.04036418e-01, 3.49137797e-01, -1.83183726e-01, 6.16385128e-01,
2.10314828e-01, 3.45091013e-01, -6.13021032e-01, 1.26537948e+00,
7.35755004e-01, -1.91878585e-01, -1.02143047e+00, -8.41844559e-01,
-9.04793546e-01, 9.84542133e-01, 4.52293503e-01, -8.17515258e-01,
-2.38201270e-01, 2.09588612e-01, 3.10936455e-01, -6.13386042e-02,
4.45269097e-01, -1.22797128e+00, -2.25841101e-01, 6.68332290e-01,
2.14404817e+00, 6.70914150e-01, 1.79696828e+00, 2.49805512e+00,
3.64554459e-01, -2.28644444e-01, -1.09699150e+00, -1.03731317e+00,
-3.96379156e-01, -1.38065556e+00, -3.82528623e-01, -1.02683833e+00,
-1.51626243e+00, -3.08281555e-02, -1.61811653e-01, -3.08337884e-01,
6.78369204e-02, -1.07006199e+00, -5.79365880e-01, 2.51602954e-01,
-1.39343464e+00, -1.05284048e+00, -1.06705460e+00, -4.86584542e-01,
-2.45306112e+00, -1.49506393e+00, -2.64593592e+00, -3.01740934e+00,
-1.77716519e+00, -2.71373930e+00, -2.03803161e+00, -1.20648230e+00,
-1.03999481e+00, -9.91418930e-01, -9.91249144e-01, -8.44261622e-01,
-1.50101351e+00, -1.25887947e-01, -1.40571889e+00, 4.88496184e-01,
-8.47740317e-01, 2.53055261e-01, 4.07728654e-01, 3.71441178e-01,
2.60954268e-01, 6.91881170e-01, 1.35204560e+00, 1.66126779e+00,
3.87633110e-02, 5.74308554e-02, -4.90039426e-01, -3.51960048e-01,
-3.40826500e-01, -4.29096877e-01, -1.51329551e-01, 7.01787314e-01,
-6.57970553e-01, 6.63866169e-01, 3.83965676e-01, 9.80863226e-01,
1.26264195e+00, 1.60111452e+00, 1.71967437e+00, 1.27973984e+00,
-1.32558645e-01, 1.04491727e+00, 1.02027173e+00, 1.30056175e+00,
1.24801760e+00, 1.83402451e+00, 1.53001108e+00, 1.71737846e+00,
1.57527834e+00, 2.04640540e+00, 2.42281956e+00, 8.27044471e-01,
2.10345979e+00, 1.06201511e+00, 1.47960807e+00, 9.71628403e-01,
5.21057069e-01, 5.03029167e-01, 4.21029664e-01, 1.10529512e+00,
6.54941435e-01, -4.79959006e-01, 8.01560793e-01, 3.78517418e-01,
5.08672026e-01, 1.68601802e-01, -3.90663606e-02, 1.62149508e+00,
1.45669361e+00, 1.24135471e+00, -7.00934966e-01, -9.13895360e-01,
4.83077266e-01, 4.50055520e-01, -1.17878557e+00, -6.26810617e-01,
7.11486395e-02, -1.66610081e-01, -4.00110856e-01, -1.59543090e-01,
3.69607167e-01, 1.05543185e+00, 1.27906214e+00, 1.23240685e+00,
2.09226813e+00, 8.90031863e-01, 2.22894835e+00, 6.97854347e-01,
1.09524514e+00, 3.24695184e-01, 7.28042788e-04, -4.45720862e-01,
-5.73334022e-02, 1.23575766e+00, 1.31635328e-01, 8.67518743e-01,
1.56059963e+00, 6.31070006e-01, 1.04464919e+00, -8.84947785e-01,
1.31704400e+00, 9.86125573e-01, 2.02759151e+00, 1.48625969e+00,
3.72770752e-02, 1.67338281e+00, 1.82601616e+00, 4.32808593e-01,
1.91126665e+00, -1.40124317e-02, -6.15394675e-01, 1.24704749e+00,
1.30533712e+00, 1.15308051e+00, 1.59741846e+00, 1.07918179e+00,
3.55408514e-01, 1.15370940e-01, -8.76059920e-01, -1.33802778e+00,
1.85639559e-01, -2.42649844e-01, -1.02996400e+00, 4.39484660e-01,
-1.07934516e+00, -2.43198782e-01, 7.12058866e-01, -3.74227516e-01,
8.88699033e-01, -3.97313023e-01, 2.86881825e-01, 4.79528683e-01,
1.96059535e+00, 1.90794329e+00, 1.21424753e+00, -9.31731368e-03,
-3.57476964e-01, -6.54898612e-01, -8.55912921e-01, 4.82253263e-01,
7.82414953e-02, -1.16817948e-02, 1.02454754e-01, 4.75701199e-01,
2.87974276e-02, 7.23507213e-01, 1.11294268e+00, 1.54304889e+00,
2.55006078e+00, 1.97330796e+00, 4.55008481e-01, 9.08155981e-01,
-3.16408466e-01, -9.11070592e-01, -1.19885254e+00, -1.49425998e+00,
-3.70184461e-01, -1.33816807e+00, 9.85350424e-02, -4.17349272e-01,
9.88553840e-01, 3.70111247e-01, 9.00847240e-01, 1.63814995e-01,
1.36672484e+00, 1.06231592e+00, 6.86277219e-01, -1.36714690e-01,
-2.10193654e-01, 1.03258012e+00, 8.99548082e-01, 9.98615963e-01,
-6.21537335e-01, 5.45974283e-01, 7.76469620e-01, 1.50429680e+00,
7.48151842e-01, 4.43051388e-01, 8.08282554e-01, 4.68694570e-01,
-9.76716836e-01, -5.65906274e-01, -9.79593683e-01, 9.32812962e-01,
1.09446918e+00, 1.53156737e+00, 6.07745371e-01, 8.90444322e-01,
2.58227806e-01, 1.08671023e+00, 1.96989982e-01, -6.81961888e-01,
-9.03880880e-01, -9.70885459e-01, -2.65810797e-01, -4.29907694e-01,
4.06336577e-01, 4.78504065e-01, 1.27168476e-01, 1.46771856e+00,
1.36753502e+00, 4.02762296e-01, 3.64682830e-01, -3.78703131e-01,
2.96891803e-01, -7.54382156e-01, 1.28006210e+00, -6.86188078e-02,
1.20052445e+00, -1.66199770e-02, 6.87313607e-01, 7.05341388e-01,
1.09361043e+00, -5.62887584e-02, -1.02212099e-01, -3.98220516e-01,
-6.35448516e-01, -1.23454870e+00, 3.30223301e-01, 6.36362445e-01,
5.95033506e-01, -1.21809241e-01, -1.01669089e+00, -2.83311223e+00,
7.05074907e-02, -8.14821554e-01, -1.09891995e-01, 8.46936249e-02,
9.89420750e-01, 1.19584073e-01, -2.55632428e-01, 1.78726604e+00,
1.15139811e+00, 7.30881522e-01, 3.73337741e-01, -8.84734893e-01,
9.15512809e-01, 3.48834785e-01, -6.83496242e-01, 1.44386150e+00,
9.40535741e-01, 1.61809060e+00, 5.90633602e-01, -1.81711114e-01,
-5.43810530e-01, -9.47633330e-01, -1.08840745e+00, -2.12147676e+00,
-1.93298030e+00, -1.81721802e+00, -8.60719118e-01, -5.87439117e-01,
-4.42704828e-01, -7.71683303e-01, -7.09202014e-01, -1.01576221e+00,
-1.00405087e+00, -2.35322370e+00, -1.55945639e+00, -1.93038555e+00,
-1.77439000e+00, -7.31110363e-01, -1.11229932e+00, -5.53420963e-01,
-2.54646158e+00, 1.30171409e-01, 9.58477732e-02, -1.67702799e-01,
1.07557175e-01, 9.39260555e-01, -1.01729680e+00, -7.51412913e-03,
2.50457369e-02, -7.93504732e-01, 7.66769888e-02, -4.91396297e-01,
-6.23168011e-01, 5.56471001e-01, -1.47489436e+00, -1.80051893e-01,
-9.29699644e-01, -2.86270863e-01, -4.03645146e-01, -1.59207517e+00,
-1.51789958e+00, -5.17777627e-01, -1.44915841e+00, -2.82704891e-01,
-7.77895523e-01, 4.24394846e-02, 6.39871136e-01, -8.25068603e-01,
1.70283470e-01, -3.04672894e-01, 7.57377629e-01, 2.81579728e-01,
9.00245371e-01, 4.38308567e-01, 6.62981478e-01, 2.26340506e-01,
6.55124877e-01, -4.74574465e-02, 5.83536959e-01, 3.30224150e-01,
1.74725260e+00, 2.92914951e-01, 6.53733549e-01, 1.90472489e+00,
2.13062770e+00, 8.29887814e-01, 1.78665718e+00, 3.36002901e+00,
1.80680569e+00, 7.24783016e-01, -8.31104542e-02, 1.06971812e+00,
-7.92409025e-01, -1.12136978e-02, 1.36246834e-01, -3.96155791e-01,
-5.17756929e-02, -5.53090799e-01, 1.27895232e-01, -1.14333497e-01,
5.69661453e-02, -1.30418263e+00, -4.20354967e-01, -9.69997976e-02,
1.25838428e+00, 7.67147245e-01, -1.96356797e-01, -7.25875722e-01,
9.13773378e-03, -1.92841740e-01, 1.36680690e+00, 7.85367122e-02,
1.43978042e+00, 3.53036371e-01, 3.21726380e-01, 7.27328771e-01,
3.42772844e-01, -8.08014869e-01, -7.84040601e-01, -9.71464217e-01,
-3.38824750e-01, -1.28809967e+00, -3.87057040e-01, -9.72010741e-01,
-1.39459163e+00, -5.41007591e-01, -1.38221603e+00, -1.88021763e+00,
-1.25018544e+00, -8.95854470e-01, -2.42330929e+00, -1.93677650e+00,
-2.85864261e+00, -2.28733387e+00, -3.12822402e+00, -2.65251704e+00,
-3.18254573e+00, -2.43695779e+00, -3.33016093e+00, -2.56150214e+00,
-2.40580874e+00, -2.04801271e+00, -9.45886359e-01, -4.80283888e-01,
-9.02308417e-01, 4.39017348e-02, 1.40193351e+00, 1.12539513e-04,
1.20803285e+00, -1.05656599e-01, -8.15697707e-01, -1.33205596e+00,
-1.11363610e+00, -1.55571463e+00, -2.35843487e+00, -3.80555093e-01,
-1.42667129e-01, 1.87343826e-01, -9.03622737e-01, 1.58042120e+00,
9.14429754e-01, 1.43619930e+00, 1.91061472e+00, 9.74028580e-01,
5.34409977e-01, -1.90812107e-01, 1.31103428e+00, 2.35584323e+00,
1.02766574e+00, 4.17273584e-01, 1.34848289e+00, 1.26365466e+00,
1.24666532e-02, 2.31648529e-02, -2.83896716e-01, 3.74971332e-01,
1.59599098e-01, 6.12558213e-01, -8.27835045e-02, 7.12749888e-01,
1.34679669e+00, 1.12912214e+00, 5.15484989e-01, 6.28624387e-01,
-2.45869042e-01, 3.27209328e-01, -4.96825605e-01, 1.31898972e-01,
-1.81544836e-01, 5.41585156e-01, 8.66005696e-01, -1.34887158e+00,
-1.05298192e+00, -3.55200747e-02, -6.17742426e-02, 3.15934090e-01,
7.58516075e-01, -1.28638664e-01, -3.62368353e-01, 1.85925648e-01,
1.10367660e+00, -4.71440744e-02, 1.15255335e+00, 9.62837157e-01,
1.01530785e+00, 5.16531675e-01, 5.18742934e-01, 7.35507772e-01,
3.67891288e-01, -9.15120567e-01, -7.12922515e-01, 7.95935851e-01,
-8.24176529e-01, 1.01923996e-01, -7.19323604e-01, -8.11150057e-01,
2.11116100e-01, 7.08622195e-01, 1.20049183e+00, 1.07098285e+00,
3.68214610e-01, 3.54257026e-01, 7.05818294e-02, -3.39895972e-01,
-1.16645409e-01, 1.82229015e-01, -7.70677164e-01, -9.31566188e-01,
1.47087451e-01, 1.06149338e+00, 1.15550485e+00, 8.00273717e-01,
1.55176802e+00, 2.10226314e+00, 3.95218245e-01, 2.77919345e-01,
1.46034669e+00, 1.19407058e+00, 1.95311543e+00, 1.77257448e+00,
4.11952827e-01, -1.03775982e-01, 1.60578453e-01, -5.78448463e-01,
-6.74402250e-02, -5.38429388e-02, -9.56971433e-01, -1.77622550e-01,
-2.58961602e-01, 6.06878724e-01, -2.61909649e-01, -3.05580909e-01,
-6.47796264e-01, -1.38091098e+00, -8.81668249e-01, -4.40749857e-01,
-9.64560692e-01, -9.02942803e-01, -1.51032638e+00, -9.78485228e-01,
-1.35448247e+00, -5.20396184e-01, -1.63593472e-01, 1.39960962e-01,
7.61197724e-01, -1.80842551e-01, -6.66113910e-01, -2.03078431e-02,
4.59656603e-02, -6.24886605e-01, -7.55849348e-01, -2.62076342e-01,
1.10954752e-01, -9.38955437e-01, -3.39143906e-01, -8.10682908e-01,
4.23887208e-01, 8.61515571e-01, 6.65772041e-01, 2.31012501e+00,
2.24641806e+00, 2.03232659e+00, 2.50357257e+00, 2.28339898e+00,
1.95069044e+00, 1.63523854e+00, 1.37286544e+00, 2.43219243e+00,
2.55092337e+00, 1.76595226e+00, -8.62412017e-02, 1.59579762e+00,
5.08483834e-01, 4.15151476e-01, 6.93189435e-01, 9.21821403e-01,
1.29025111e+00, 7.93774884e-02, 6.80210192e-02, -6.94808049e-01,
-3.51609274e-01, 1.47062707e+00, 5.89348866e-01, 2.11627876e+00,
6.52185541e-01, 1.26132338e+00, 6.98691324e-01, 3.48855150e-01,
-1.33109062e+00, -1.47342324e+00, 1.09013417e+00, -1.11974953e-02,
4.17028815e-01, 3.76022584e-01, 2.70449474e-01, 5.42963217e-01,
-2.79830499e-01, -4.99062723e-01, 1.69929223e-01, -6.13573591e-01,
-7.45367870e-01, -9.69028857e-01, -2.33629353e+00, -2.03188486e+00,
-1.81089730e+00, -1.49790534e+00, -1.99281756e+00, -1.81819238e+00,
-1.47388646e+00, -1.81642763e+00, -2.32034092e+00, -9.46747332e-01,
-6.22658430e-01, -6.70254068e-01, -1.25268470e+00, -5.51126224e-01,
1.12351647e+00, 7.41654766e-01, -4.56727439e-01, -5.36036952e-01,
3.79299501e-01, 6.10543198e-01, 1.04647975e+00, -5.26770962e-02,
9.10931820e-01, 2.88667270e-01, 1.43372970e+00, 8.83455823e-01,
7.40768747e-01, 1.02984778e+00, -1.46106980e-01, 3.70249466e-01,
-5.48979579e-01, -1.64568153e+00, 3.48798867e-01, 2.17017707e-01,
-1.37474632e-01, 9.53455170e-01, -7.06646698e-01, -7.85727930e-01,
3.17707117e-01, -7.46688323e-01, 5.72143464e-01, 1.22252222e+00,
6.49886478e-01, 1.11199626e+00, 2.98352821e+00, 2.47769388e+00,
1.18576263e+00, 5.33805666e-01, 2.10096587e+00, 1.59574729e+00,
1.31832487e+00, 3.84267233e-01, 1.18968620e+00, 2.39827315e+00,
1.53984467e+00, 1.73049810e+00, 3.03364076e-01, -7.57727641e-01,
-6.75717011e-01, -1.05885226e+00, -7.91154756e-01, 2.93195048e-01,
-8.55754313e-01, -2.03581616e-01, -4.70712707e-01, 4.37962580e-01,
8.03218956e-01, 5.72756250e-01, -2.09349498e-01, 6.93622013e-01,
1.52325261e+00, 7.46335450e-01, 1.04179128e+00, 6.93180243e-01,
6.15903795e-01, 1.72977174e+00, -8.97999867e-02, 2.50893420e+00,
1.78139472e+00, 1.30976033e+00, 5.56591118e-01, 2.35011371e-01,
-3.85188166e-01, -4.47569045e-01, -1.24490106e-02, -3.24913641e-02,
7.26347917e-01, -7.93962450e-01, -1.13628472e+00, -3.70710503e-01,
-1.41297811e+00, -7.05695681e-01, -6.89106682e-01, -8.76022961e-01,
-6.35076122e-01, -2.20968410e+00, -1.66157685e+00, -2.78915712e-01,
-7.35596283e-01, -7.08503954e-01, 1.98219493e-01, -1.47695316e+00,
-4.35808912e-01, -1.13217275e-01, -1.08390134e+00, 8.56553143e-01,
5.19019577e-01, 4.48514228e-01, -1.49052322e-01, 1.64228141e-01,
-2.38744808e-02, -9.94880817e-01, -1.09619291e+00, -1.23149681e+00,
-2.29443615e+00, -9.24490557e-01, -1.41361200e+00, -1.14823308e+00,
6.35477621e-01, 5.99331444e-01, -5.51869204e-01, 4.57836691e-01,
1.36644386e+00, 1.99158100e+00, 1.05917265e+00, -6.20214682e-01,
-3.03986356e-01, 9.21210441e-01, 1.86984440e+00, 7.19809989e-01,
2.24614850e-01, 1.83986293e+00, -4.98484113e-01, 8.48969414e-01,
1.46145990e+00, 4.64898199e-01, 5.95667867e-01, -1.65015303e-01,
4.98926356e-01, 1.27696976e+00, 6.31788684e-01, 9.02383220e-01,
9.09245114e-02, -8.33510548e-01, -7.73376882e-01, 4.20514784e-01,
4.00816394e-01, 4.23429604e-01, 7.03190294e-01, 2.45607983e-01,
1.12766363e-01, 2.29990495e-01, 1.44303637e-01, 2.98763762e-01,
1.66542808e+00, 2.09103268e+00, 1.90449043e+00, 1.72099303e+00,
1.25933300e+00, 2.29352112e+00, 1.97652899e-01, 1.17981554e+00,
-1.11019238e+00, -3.31291763e-01, -4.81943208e-01, -1.57380538e+00,
-8.01543386e-01, -1.57373293e+00, -6.11527712e-01, -1.17852491e+00,
4.34070610e-01, -9.47518014e-01, -1.21053098e+00, -8.52856246e-01,
-1.25192446e+00, -1.30987448e-01, 2.71523161e-01, -1.02593613e+00,
4.19178470e-01, -3.32333953e-01, -7.02741725e-01, 1.18590220e+00])

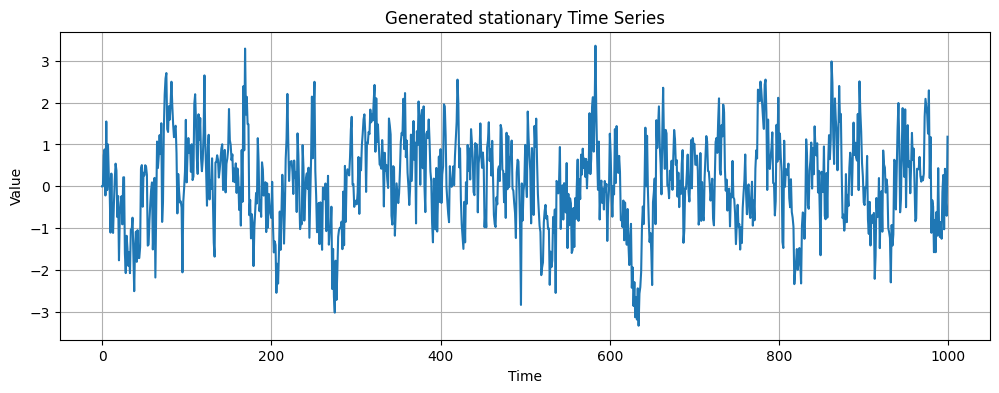

#plot data
plt.figure(figsize=(12, 4))
plt.plot(data)
plt.xlabel('Time')
plt.ylabel('Value')
plt.title('Generated stationary Time Series')
plt.grid(True)

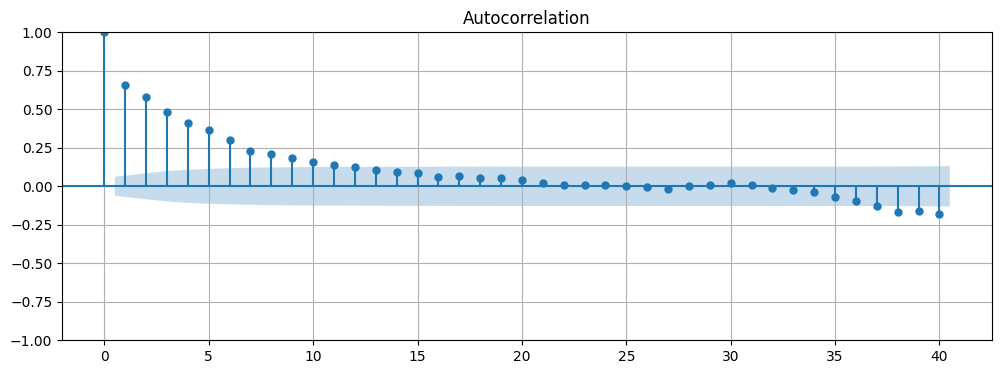

Next we can use plot_acf to plot the autocorrelation function of the time series. From the resulting plot we can see that that there is autocorrelation present in the data.
# Plot the ACF of the time series
fig, ax = plt.subplots(figsize=(12, 4))
plot_acf(data, lags=40, ax=ax)
ax.grid(True);
To make sure that we have selected the correct number of lags, we can test for significance using the likelihood ratio test (LRT). LRT is similar to the GLRT from chapter 3, but now we have made some assumptions on the standard deviations of the observations. We will apply the LRT to the AR(1) vs AR(2) and AR(2) vs AR(3) models.
The AR(1), AR(2) and AR(3) models are defined as follows:
AR(1): \(S_t = \phi_1 S_{t-1} + \epsilon_t\)
AR(2): \(S_t = \phi_1 S_{t-1} + \phi_2 S_{t-2} + \epsilon_t\)
AR(3): \(S_t = \phi_1 S_{t-1} + \phi_2 S_{t-2} + \phi_3 S_{t-3} + \epsilon_t\)
Since we need \(S_{t-3}\) we will have \(y = S[3:]\)
from scipy.stats import chi2
y = data[3:]
s1 = data[2:-1]
s2 = data[1:-2]
s3 = data[:-3]
n = len(y)
# AR(1) model
X1 = np.column_stack((s1)).T
phi_ar1 = np.linalg.inv(X1.T @ X1) @ (X1.T @ y)
e1 = y - X1 @ phi_ar1
rss1 = e1.T @ e1
# AR(2) model
X2 = np.column_stack((s1, s2))
phi_ar2 = np.linalg.inv(X2.T @ X2) @ X2.T @ y
e2 = y - X2 @ phi_ar2
rss2 = e2.T @ e2
# AR(3) model
X3 = np.column_stack((s1, s2, s3))
phi_ar3 = np.linalg.inv(X3.T @ X3) @ X3.T @ y
e3 = y - X3 @ phi_ar3
rss3 = e3.T @ e3
# test ar(1) vs ar(2) using log likelihood ratio test
dof = 1
crit = chi2.ppf(0.95, dof)
test_stat = n * np.log(rss1 / rss2)
print('AR(1) vs AR(2) test statistic:', test_stat, 'Critical value:', crit)
if test_stat > crit:
print('Reject AR(1) in favor of AR(2)')
else:
print('Fail to reject AR(1)')
# test ar(2) vs ar(3) using log likelihood ratio test
dof = 1
crit = chi2.ppf(0.95, dof)
test_stat = n * np.log(rss2 / rss3)
print('AR(2) vs AR(3) test statistic:', test_stat, 'Critical value:', crit)
if test_stat > crit:
print('Reject AR(2) in favor of AR(3)')
else:
print('Fail to reject AR(2)')
AR(1) vs AR(2) test statistic: 65.33452260973363 Critical value: 3.841458820694124
Reject AR(1) in favor of AR(2)
AR(2) vs AR(3) test statistic: 3.515371361537304 Critical value: 3.841458820694124
Fail to reject AR(2)

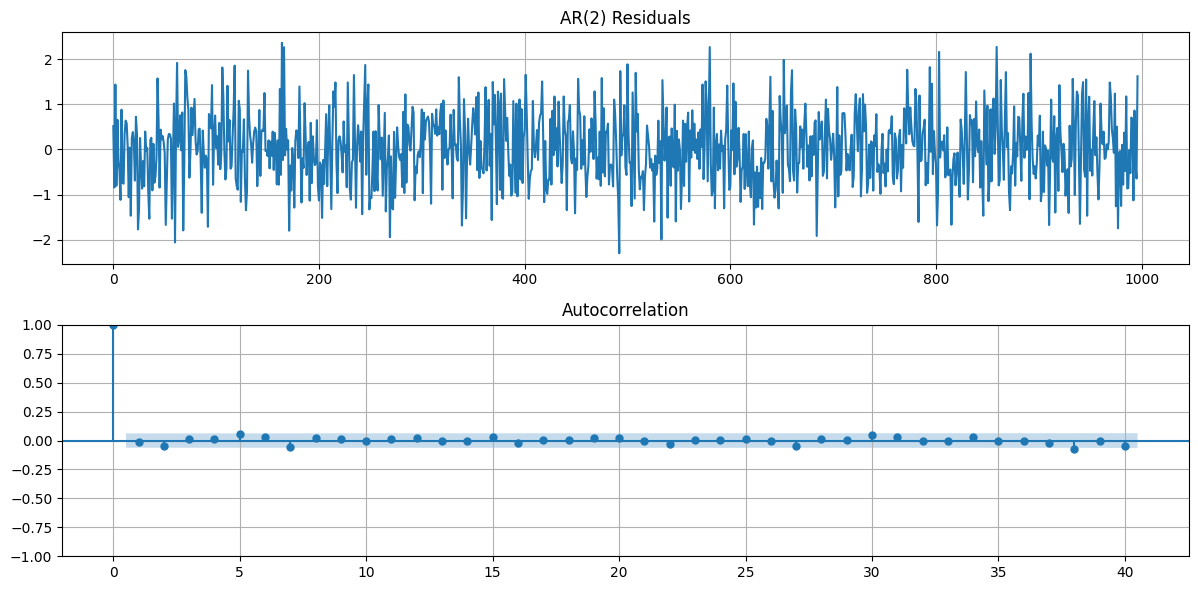

From the LRT results we can see that an AR(2) model is the best fit for the data. Finally we will fit the AR(2) model to the data and plot the residuals. The residuals should be white noise, which is confirmed by the ACF plots of the residuals. Plotting
# plot the residuals
fig, ax = plt.subplots(2,1,figsize=(12, 6))
ax[0].plot(e2)
ax[0].set_title('AR(2) Residuals')
ax[0].grid(True)
plot_acf(e2, lags=40, ax=ax[1])
ax[1].grid(True)
fig.tight_layout()
sigma_e2 = np.std(e2)
var_phi2 = sigma_e2**2 * np.linalg.inv(X2.T @ X2)
sigma_phi2 = np.sqrt(np.diag(var_phi2))
# print the AR(2) coefficients with confidence intervals
print('AR(2) Coefficients:')
print('Phi_1 = ', round(phi_ar2[0], 4), '+/-', round(1.96 * sigma_phi2[0], 4))
print('Phi_2 = ', round(phi_ar2[1], 4), '+/-', round(1.96 * sigma_phi2[1], 4))
AR(2) Coefficients:
Phi_1 = 0.4961 +/- 0.0601
Phi_2 = 0.2523 +/- 0.0602
Attribution
This chapter was written by Alireza Amiri-Simkooei, Christiaan Tiberius and Sandra Verhagen. Find out more here.
